額定值: 120VAC 5A/250VAC 2A
產品分類：防水船形開關
防水船形開關-3A規格參數
觸點額定值: Dependent upon contact material.
機械壽命: 30,000 make – and – break cycles.
接觸電阻: 10 mΩ max .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
絕緣阻抗: 1,000MΩ min.
耐壓強度: 1,000V rsm min@sea level.
工作溫度: -30℃ to 85℃.
防水船形開關-3A使用材質
外殼及套管: (UL94V-0). Glass filled nylon 6/6,flame retardant,heat stabilized
作動器: Nylon, black std.internal O-ring seal standard with all actuactors.
框架: Spring steel, black std
切換部位: Brass or steel , tin plated.
安裝支架: Nylon
接觸點/端子: Silver or gold plated copper ally.

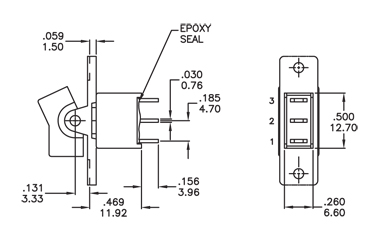

防水船形開關-3A基本尺寸
