額定值: 120VAC 3A/250VAC 1A
產品分類：防水船形開關
防水船形開關-4A規格參數
觸點額定值: Dependent upon contact material.
機械壽命: 30,000 make – and – break cycles.
接觸電阻: 2Ωmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.0 m
絕緣阻抗: 1,000MΩ min.
絕緣阻抗: 1,000V RMS@sea level.
工作溫度: -30℃ to 85℃.
防水船形開關-4A使用材質
外殼及套管: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
作動器: Nylon, black std.Internal O-ring seal standard with all actuators.
切換部位: Brass or steel, tin plated.
接觸點/端子: Silver or gold plated copper alloy

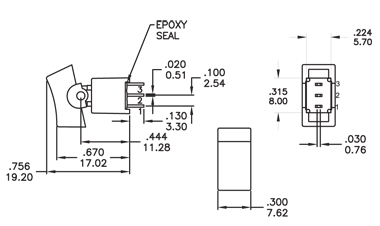

防水船形開關-4A基本尺寸
