產品類型：超小型船形開關
規格參數
功率: Dependent upon contact material.
機械壽命: 30,000 make – and – break cycles.
接觸電阻: 20MΩmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
絕緣電阻: 1,000MΩ min.
絕緣強度: 1,000V RMS min@sea level.
工作溫度: -30℃ to 85℃.
使用材質
外殼: Diallyl phthalate (DAP) (UL94V-0).
翹板: Nylon, black std.
銅頭: Brass or zinc, nickel plated.
框架: Stainless steel.
支撐支架: Brass , tin plated.
端子/彈片: Brass ,with Silver or gold

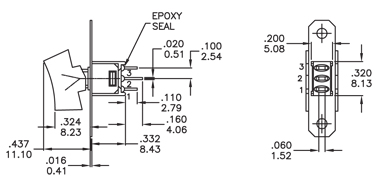

4M基本尺寸
相關文章：4M系列船形開關選型指南
