產品類型：半間距貼片編碼開關
規格參數
電氣壽命: 1,000 cycles
額定值: 100mA ,50V DC
接觸電阻 : 100mΩ max.at initial
絕緣電阻: 100MΩ min.at 500 V DC
絕緣強度: 300V AC/1 minute
回路: SPST
工作溫度范圍:-40℃ to +85℃
儲存溫度范圍: -40℃ to +85℃
材質使用
座: UL94V-0 Nylon High-Temp. Thermoplastic
顏色: Black
蓋子: UL94V-0 Nylon High-Temp. Thermoplastic
顏色: Black
作動器: LCP High-Temp, Thhermoplastic
顏色: White
接點: Alloy Copper with gold plated
端子: Brass with gold plated

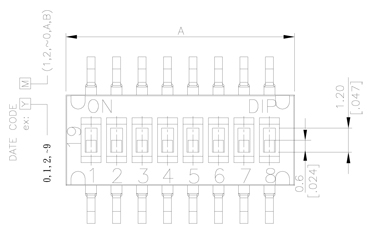

DHNF尺寸
