產品類型：SPST琴鍵編碼開關

規格參數
電氣壽命: 2,000 operations min. per switch 24VDC,25mA
額定值: 100mA ,50V DC
開關額定值: 25mA ,24V DC
接觸電阻 : (a) 50mΩ max.at initial
                                 (b) 100mΩ max.after life test
絕緣電阻: 100MΩ min. 500 V DC
絕緣耐壓: 500V AC/ minute
電容: 5pF max
電路: Single pole single throw
工作溫度范圍:-20℃ to +85℃
存儲溫度范圍: -40℃ to +85℃


DL材質
底座與外殼: UL94V-0 PPS High-Temp. Thermoplastic
顏色: Black
操作柄: UL94V-0 PBT High Thermoplastic
顏色: White
接點: Alloy Copper with gold plated
端子: Brass with gold plated
觸點鍍層: Gold plated over nickel
端子電鍍: Gold plated
型號: KAPTON

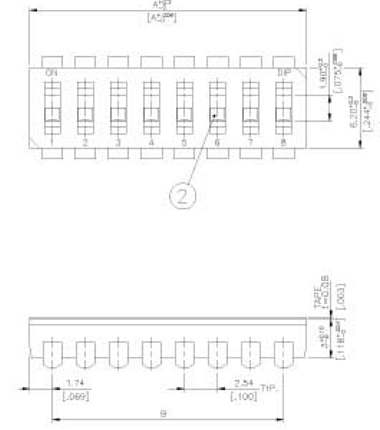

DL基本尺寸
