產品類型：琴鍵式編碼開關
規格參數
電氣壽命: 2,000 cycles
額定值: 25mA ,24V DC
接觸電阻: 100mΩ max.at 500VDC
絕緣電阻: 100MΩ min. at 500 V DC
耐壓強度: 500V AC/1 minute
操作溫度:-20℃ to +85℃
存儲溫度: -40℃ to +85℃
使用材質
底座與外殼: UL94V-0 Nylon High-Temp. Thermoplastic
顏色: Black
柄: UL94V-0 LCP High-Temp Thermoplastic
顏色: White
接點: Alloy Copper with gold cladding
端子: Brass with gold cladding

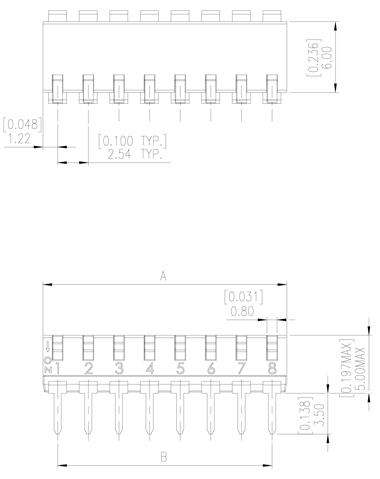

EPE/EPM基本尺寸
