產品類型：小型電源鑰匙開關
規格參數
· Zinc alloy die cast housing and cylinder.
· Bright chrome plated standard.
· No pin tumbler mechanism.
· Zinc alloy tubular keys, chrome plated.
· Key may be withdrawn in one or both positions.
· Silver plated contacts and terminals.
· NS1052 2 position (off-on) 2 terminals,
· NS1053 2 position (on-on) 4 terminals,
· NS1054 3 position (off-on-on) 4 terminals,
· Hex nut or speed clip mounted.
· All keyed alike or 6 combinations standard.
· 6 combinations available.

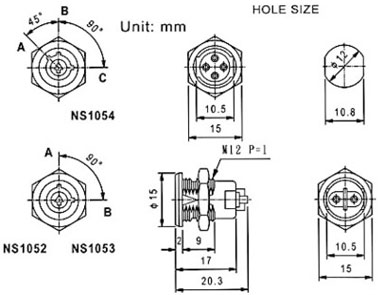

基本尺寸
