產(chǎn)品類型：中型電源鎖開關(guān)（Φ16mm）
額定值:1205VAC 1A / 250VAC 0.5A
產(chǎn)品描述
· Zinc alloy die cast housing and plastic cylinder.
· Bright chrome plated standard.
· 3 disc tumbler mechanism.
· Brass keys, nickel plated, with plastic cover.
· Key may be withdrawn in one or both or three positions.
· Silver plated contacts and terminals.
· S331 2 position (on-on) 60 index 3 terminals.
· S332 2 position (off-on) 60 index 2 terminals.
· S333 3 position (off-on-on) 60 index 3 terminals.
· Hex nut or speed clip mounted.
· 16 combinations available.

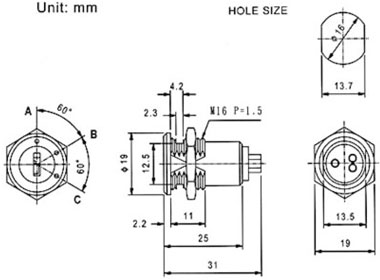

基本尺寸
|
