產品類型:SMT型滑動開關(1P3T)
規格參數
電氣壽命:10,000 cycles
機械壽命:10,000 cycles
操作力:350gf(standard)
150gf(lighter operating force)
額定值: 100mA ,50V DC
開關額定值:25mA,24VDC
接觸電阻:100mΩ max.
絕緣電阻:100MΩ min( 500 VDC)
絕緣強度:500V AC/1 minute
回路:1P3T
工作溫度范圍:-20 to +70℃
存儲溫度范圍:-40 to +85℃
使用材質
顏色:Black
蓋:Stainless steel
觸點:Alloy Copper
底座:LCP High-Temp thermoplastic
端子:Brass C2680-H
操作柄:LCP thermoplastic

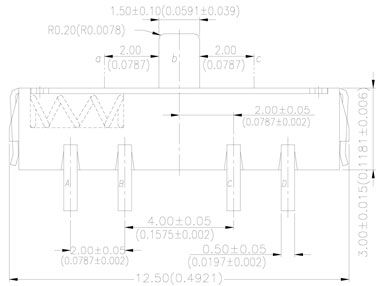

基本尺寸
