產品類型:微型SMT型滑動開關(1P2T,1P3T)
規格參數
電氣壽命:10,000 cycles
額定值: 300mA ,4V DC
開關額定值:25mA,24VDC
接觸電阻: 100mΩ max.
絕緣電阻:100MΩ min( 500 VDC)
絕緣強度:500V AC/1 minute
電容:5pF max.
回路:SPDT,SP3T,DPDT,SP4T
工作溫度范圍:-20℃ to +70℃
存儲溫度范圍:-40℃ to +85℃
使用材質
顏色:Black
蓋子:Nickel silver
接點:Alloy Copper, gold plated
底座:LCP High-Temp thermoplastic
端子:Brass ,gold plated
彈簧鋼板:Stainless steel

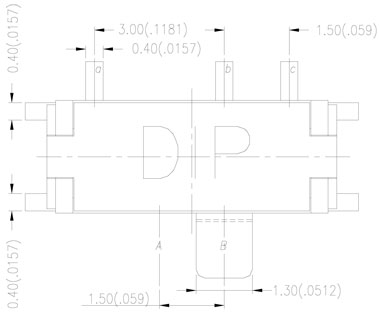

基本尺寸
