產品類型：超小型鈕子開關
規格參數
額定值：3A/120VAC1A/250VAC
功率：Dependent upon contact material
機械壽命： 30,000 make – and – break cycles.
接觸電阻：20 mΩ max.Initial @ 2-4VDC,100 mA for both silver and gold plated contacts.
絕緣電阻：1,000mΩmin。
絕緣強度：1,000V RMS@sea level.
工作溫度：-30℃ to 85℃.
作用材質
外殼：Diallyl phthalate (DAP)(UL94V-0).
搖桿：Brass or zinc,chrome plated.
銅頭：Brass, nickel plated.
框架：Stainless Steel.
支撐支架：Brass ,tin plated.
端子/彈片：Brass ,with Silver or gold plated.

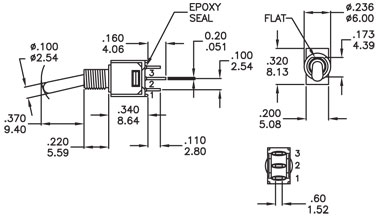

2M基本尺寸
.jpg)
