規格參數：
額定值：5A/120VAC2A/250VAC
功率：Dependent upon contact material
機械壽命：40,000 make – and – break cycles.
接觸電阻：10 mΩ max.Initial @ 2-4VDC,100 mA for both silver and gold plated contacts.
絕緣電阻：1,000MΩmin.
絕緣強度：1,000Vrms min@sea level.
工作溫度范圍：-30℃ to 85℃.
使用材質
外殼：Diallyl phthalate (DAP)(UL94V-0).
搖桿：Brass,chrome plated.
銅頭：Brass, nickel plated.
框架：Stainless Steel.
支撐支架：Brass ,tin plated.
端子/彈片：Brass , Silver or gold plated.

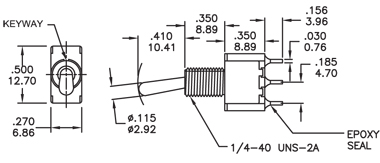

1M基本尺寸
