產(chǎn)品類型:超小型滑動開關(防水)
規(guī)格參數(shù)
功率:Max 0.4VA max @ 48VAC or DC.
機械壽命:minimum 40,000 operations.
接觸電阻:50mΩ max.
絕緣電阻: 500MΩ at 250VDC.
絕緣強度:500V ,50Hz for the duration of 1 minute.
工作溫度范圍:-20℃ to 80℃.
防水等級:IP67
使用材質(zhì)
滑柄:PBT, yellow std.
框架:Brass,Ni plated
外殼:PBT,Meets(UL94V-0),Washable
支撐支架:Brass,tin plated.
彈片/端子:Phosphor bronze gold-plated over nickel barrier
端子密封:Epoxy

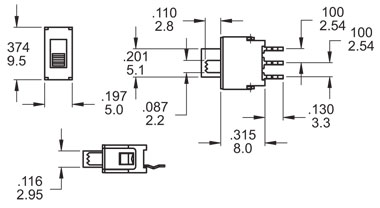

基本尺寸
