尺寸:6.8x4.1mm
產品類型：貼片型帶燈輕觸開關
規格參數
機械特性
操作力: 160±50gf Brown (N)
行程：0.25+0.2/-0.1mm
工作溫度: -20℃ to +70℃
儲存溫度: -30℃ to +80℃
電氣特性
電氣壽命: 50,000 cycles for 160gf
額定值:50mA , 12VDC
接觸電阻: 100m Max
絕緣電阻: 100M min. 500V DC
絕緣耐壓: 250VAC / 1 minute
觸點形式: 1 pole 1 throw
LED：See Specification.
使用材質
蓋子：UL 94V-0 Nylon High-temp Thermoplastic.
顏色：White
操作桿：UL 94V-0 Nylon High-temp Thermoplastic.
顏色：Black
觸點：Stainless with silver cladding.
底座：UL 94V-0 Nylon High-temp Thermoplastic.
顏色：White(160gf)
端子：Brass, Silver cladding
粘連膠帶：Kapton

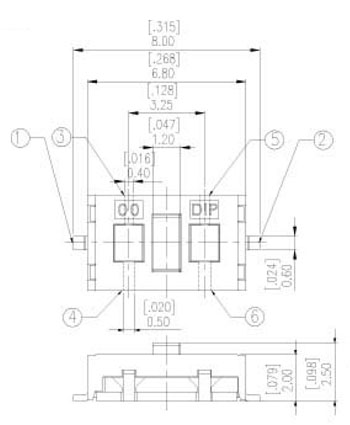

基本尺寸
