產品類型：帶船形開關的直流電源插座
規格參數
電氣功率: DC 15V 2.5A
接觸電阻: 20mΩ(initial)
絕緣電阻: ＞1000MΩ(500VDC between open contacts)
絕緣強度: ＞1500V @1 minute
電氣壽命: 6000 cycles
端子溫升: Max.30℃
端子可焊性: Max 350℃,3S(no pressure may be placed in the terminals when soldering by hand )
任何鎘鉛汞等和它的化合物是不包括在本產品
產品材質
外殼&框架：Glass filled Nylon 6/6,black
翹板：Glass filled Nylon 6/6,black
彈片：Copper alloy,silver plated
端子：Copper alloy,silver plated
軸心：Brass,nickel plated

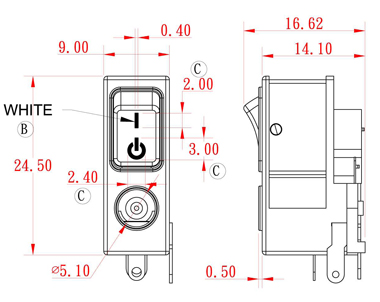

基本尺寸
