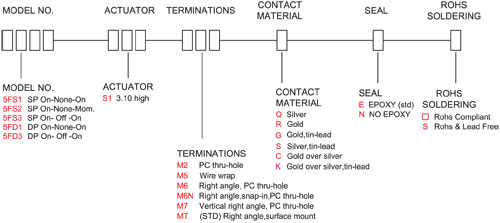

CONTACT MATERIAL OPTIONS
SILVER&GOLD OVER SILVER
3 Amps with resistant load /120VAC or 28VDC
1 Amps with resistant load / 250VAC
GOLD
0.4 Volt-Amps(VA)max. /20V max. (AC or DC)

SOLDERING PROCESSES
MANUAL SOLDERING : Use soldering iron of 30 watts, controlled at 350℃
approximately 5 seconds while applying solder.
WAVE SOLDERING : Recommended Soldering Temperature:260±5℃
Duration of Solder Immersion: 5±1 seconds
(PCB is 1.6mm in thickness)
SOLDERING: Vapor phase
