5SE series Slide Switch防水滑動開關

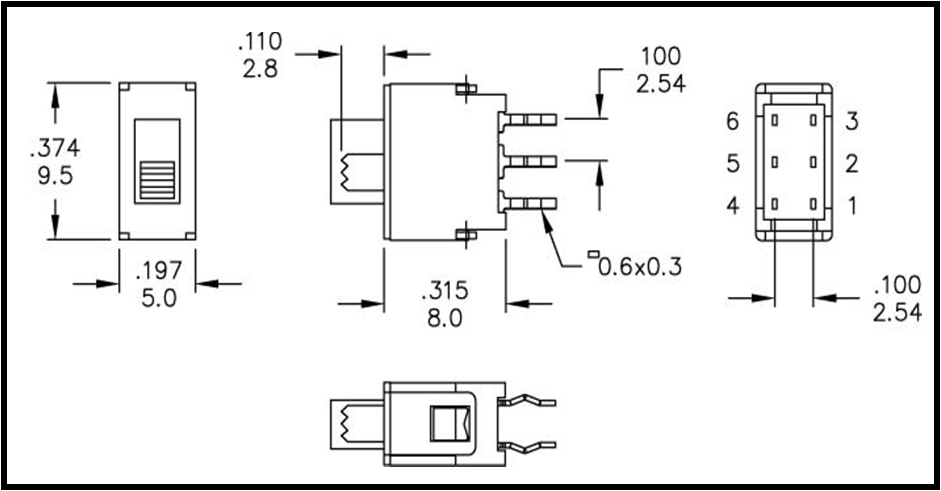

5SE規格參數
Contact rating: Max 0.4 VA max @ 48 VAC or DC
Operating Life(壽命): 40,000 steps
Contact resistance: 50mΩmax.
Insulation resistance: 500mΩ at 250 VDC.
Dielectric strength: 500V, 50 Hz  for the duration of 1 mimute.
Operating temperature: -20°C to 80°C.
Degree of protection: IP67

5SE應用產業

應用範圍:檢測儀器/設備電腦，週邊設備通訊和網通設備。
開發原因：年度開發計劃
使用客戶：KNITTER、TECVAN 、泰瑞通


了解更多滑動開關產品信息
