RS-001 & RS-002  Push Switch, Latching自鎖按鍵開關

Specifications
Rating：0.4A MAX. 20VAC or 20DC
Contact resistance :  50mΩ MAX.
Insulation resistance : 100MΩ MIN.
Dielectric strength : 250VAC for 1 MIN
Operating Life(壽命): 10,000 steps
Operation temperature : -30 to +85

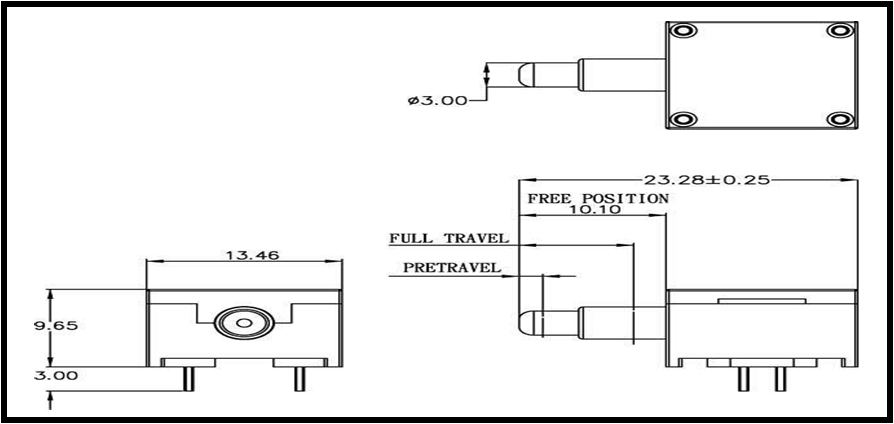

Mechanical (reference)
Operation  force to : 250 ± 50gf
Free position : 10.10 ± 0.25mm
Pre travel : 1.52 ± 0.38mm
Full travels : 5.84mm Min.

RS-001應用產業

產能:手工
應用範圍:網路桌上型電腦的警報開關/入侵開關，電信設備的警報開關/入侵開關，蜂巢式基地臺的警報開關/入侵開關。
