PBL series Push switch帶燈按鍵開關

Specifications
Pole-position : Momentary Type, SPST with LED
Contact rating : 30V DC,0.1A
Contact resistance : 50mΩ max. 1.5V DC ; 100mA,
                                             by Method of Voltage DROP
Insulation resistance : 100MΩ min. 500V DC
Dielectric strength : Breakdown is not allowable ;
                                 500V AC for 1 Minute
Operating force 250±100gf
Operating Life(壽命): 50,000 steps
Operating temperature range : -40°C ~ 85°C
Total travel : 1.8±0.3mm

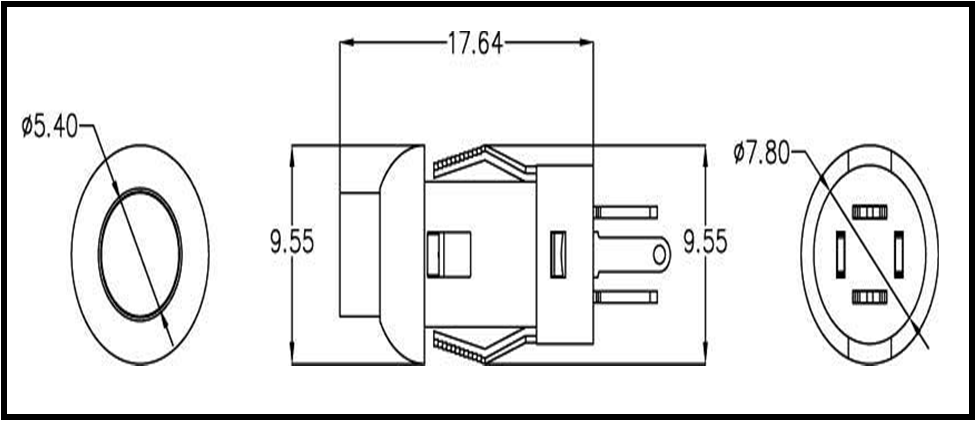

產品尺寸

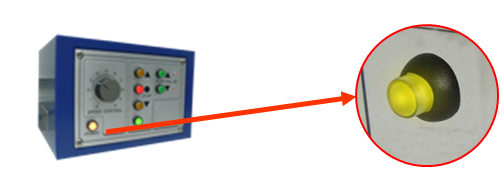

PBL應用產業



產能:手工
應用範圍:汽車工業，辦公室設備，電腦產品通訊設備。
開發原因：年度開發計劃
使用客戶：開發中
